Bộ chuyển đổi CAN Bus sang quang 3Onedata MC201-F
Features
- Support 1 CAN port to 1 fiber port
- CAN port supports two options for choosing baud rate, automatic detection and user definition. The range of baud rate is 2.5kbps-1000kbps
- Data receiving/storing/forwarding could be achieved between 2 CAN networks with different rates when used in pairs
- It can extend CAN bus transmission distance, the transmission distance of fiber port can reach up to 15km
- Support -40～75℃ wide operating temperature range
Specification
| Fiber Port | Interface form：SC/ST/FC
Transmission distance： multimode：2km single mode：15km Optical cable： multimode：50/125μm or 62.5/125μm single mode：8.3/125μm、8.7/125μm、9/125μm or 10/125μm Transmission wavelength： multimode：1310nm single mode：1310nm or 1550nm |
| CAN Interface | Standard: CAN2.0A, CAN2.0B
CAN signal: CANH, CANL, GND Duplex mode: 2-wire Half Duplex Mode Baud rate: 2.5kbps-1000kbps Load capacity: support concurrent transmitting of 110 nodes Transmission distance: 40m~10km Interface form: adopt 5-pin 5.08mm pitch terminal blocks Terminating resistor: optional external 120Ω terminating resistor Interface protection: 2kVAC isolation protection |
| LED Indicator | Power supply indicator, fiber port/data indicator, CAN port indicator |
| Power Requirement | 5VDC，DC round head |
| Power Consumption | No-load: 1.39W@5VDC
Full-load: 1.31W@5VDC |
| Environmental Limit | Operating temperature: -40~75℃
Storage temperature:-40~85℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal
Installation: wall mounting Dimension (W x H x D): 69mm×22mm×100mm Weight: 237g |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV Contact discharge: ±6kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS |

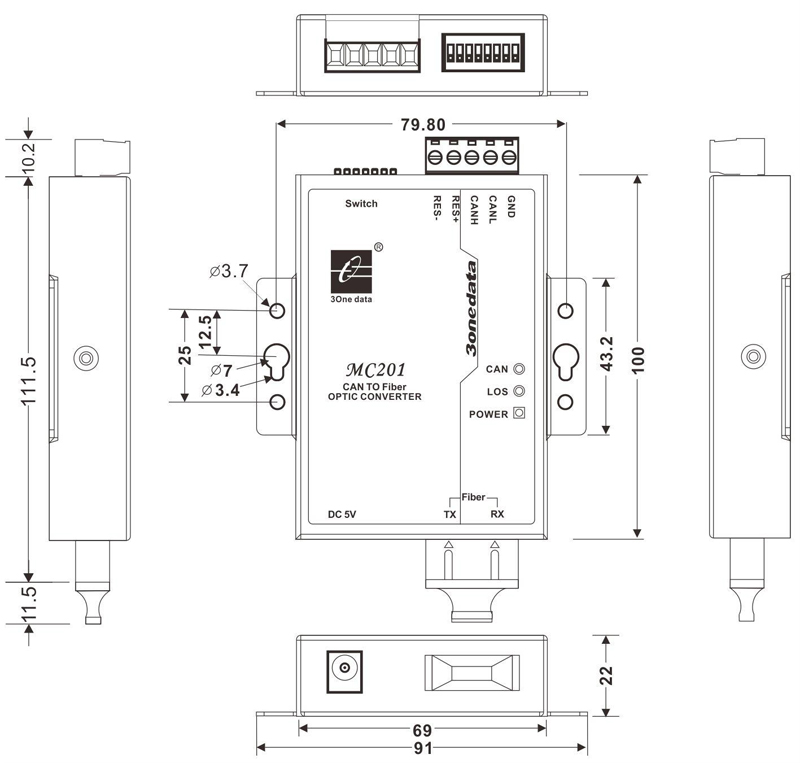

Dimension
Ordering Information
| Available Models | Fiber Port | CAN | Power Supply |
| MC201-F | 1 | 1 | 5VDC |
