Bộ chuyển đổi (Bridge) 2 cổng CAN Bus cách ly ICP DAS I-7532-G CR
The I-7532 is a CAN bus bridge that can be used to integrate two CAN networks even they implement different CAN baud rate. Compared with the I-7531, the I-7532 offers more than 3 useful features. First, the transmission distance limitation of the CAN bus system on each side of the I-7532 is independent, which means the total CAN network distance can be extended. Second, when some errors (e.g. bit error) happened on one CAN port of the I-7532, the other CAN port of the I-7532 will not be affected and can still work correctly. Last, the baud rate and CAN message filter configuration of these two CAN ports on the I-7532 is able to be tuned following users’ applications. These features mean that users can design their applications more flexible and efficient.

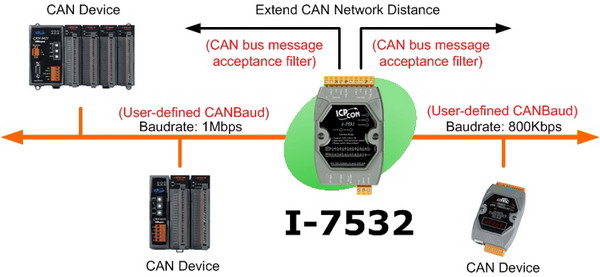

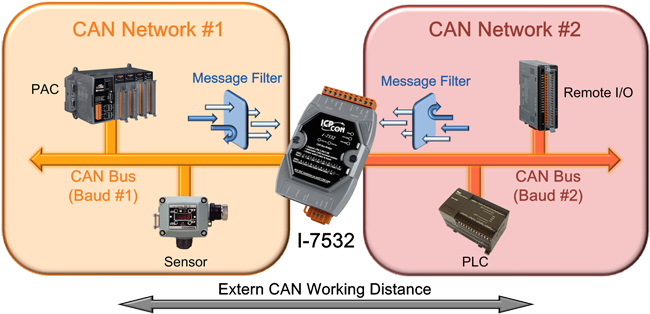

Application
|
 |
Features
- 82C250 CAN transceiver
- 2500 VRMS photo coupler isolation on the CAN side
- 3KV galvanic isolation among the power supply and 2 CAN channels
- Support both CAN 2.0A and CAN 2.0B
- Fully compatible with the ISO 11898-2 standard
- Adjustable CAN bus baud rate from 5Kbps to 1Mbps or programmable user-defined baud rate
(For firmware v1.01 or newer) (NEW) - Support CAN bus message acceptance filter configuration
(For firmware v1.01 or newer) (NEW) - Provide I-7532 Utility for CAN bus message acceptance filter and user-defined CAN baud rate etc. configuration easily and quickly
(For firmware v1.01 or newer) (NEW) - Support firmware update via CAN1 of I-7532
(For firmware v1.02 or newer) (NEW) - CAN messages can be forwarded under another identifier
(For firmware v1.03 or newer) (NEW) - Built-in jumper to select 120Ω terminal resistor
- Watchdog inside
- Up to 100 CAN nodes on each channel
- Transmission distance up to 1 km on each CAN port
- Removable terminal block, Mount easily on DIN-rail
- 768 frame buffer for each CAN channel
- The baud of each channel can be different for highly flexibility
- Supports a range of baud rates from 10 kbps ~ 1 Mbps
- Able to configure the CAN baud rate for each channel using a rotary switch
- Extends the CAN transmission distance
Note: We have verified to drive 100 CAN nodes at the same time via one CAN port of I-7532.
|
Switch Value
|
0
|
1
|
2
|
3
|
|
Baud [bps]
|
Config
Mode |
5k or User-defined
CAN baud |
10k
|
20k
|
|
Switch Value
|
4
|
5
|
6
|
7
|
|
Baud [bps]
|
40k
|
50k
|
80k
|
100k
|
|
Switch Value
|
8
|
9
|
A
|
B
|
|
Baud [bps]
|
125k
|
200k
|
250k
|
400k
|
|
Switch Value
|
C
|
D
|
E
|
F
|
|
Baud [bps]
|
500k
|
600k
|
800k
|
1000k
|
Utility
-
Provide CAN bus User-Defined Baud Rate / CAN-ID Acceptance Filter / CAN-ID Mapping configuration
-
Provide saving the CAN acceptance filter data to file. The “*.dat” file format is compatible with configuration file of I-7565-H1/H2. The “*.xls” file is useful for CAN hardware interface of other companies to configure CAN-ID filter function of I-7532
-
Support ICP DAS CAN hardware interface including “RS232 to CAN”, “Ethernet to CAN”, “USB to CAN”, “CAN Card” series products for configuration
Hardware Specifications
|
CAN Interface
|
|
|
Transceiver
|
NXP 82C250
|
|
Channel number
|
2
|
|
Connector
|
4-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H)
|
|
Baud Rate (bps)
|
Adjustable CAN bus baud rate from 5Kbps to 1Mbps or programmable user-defined baud rate
|
|
Isolation
|
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
|
|
Terminator Resistor
|
Jumper for 120 Ω terminator resistor
|
|
Specification
|
ISO-11898-2, CAN 2.0A and CAN 2.0B
|
|
Time Delay
|
[ 1Mbps (8-byte Data) ] ID-29bit => 156us ; ID-11bit => 134us [ 5Kbps (8-byte Data) ] ID-29bit => 30ms ; ID-11bit => 25ms |
|
Power
|
|
|
Power supply
|
Unregulated +10 ~ +30 VDC
|
|
Protection
|
Power reverse polarity protection, Over-voltage brown-out protection
|
|
Power Consumption
|
2 W
|
|
Mechanism
|
|
|
Installation
|
DIN-Rail
|
|
Dimensions
|
72mm x 122mm x 33mm (W x L x H)
|
|
Environment
|
|
|
Operating Temp.
|
-25 ~ 75 ℃
|
|
Storage Temp.
|
-30 ~ 80 ℃
|
|
Humidity
|
10 ~ 90% RH, non-condensing
|
Ordering Informations
| I-7532-G CR | Two-channel CAN Bus Isolated Bridge (RoHS) |
Optinal Accessories
| CA-0910-C | 9-pin Female D-sub & 3-wire CAN bus cable (1M) |
| SG-770 | 7/14 channel Surge Protector |
| 4PCD-002 | EMI Ferrite Split/Snap-On Core |
| M12A-5P-IP68 | Field-Installation A-coded 5-pin Female |
