Cảm biến phát hiện chuyển động (PIR) 4m+ đo nhiệt độ + độ ẩm kết nối RS-485 + Ethernet PoE+Wi-Fi ICP DAS PIR-230-WF CR
Features
- Adjustable Time-Delay / Lux / Sensitivity (Lux/Sensitivity PIR-230 Only)
- Internal Photosensor for Smart Switch Control
- LED Indicator for PIR/Temperature Sensor
- Temperature Sensor for Measuring Room Temperature
- Suitable as either Temperature or Fire Alarm
- Relay Output Can be Used to Control Light Via the PIR/Temperature Sensor
- Suitable for loads up to 1500 W (Incandescent) and 300 W (Fluorescent)
- Fluorescent (T8) Loading Capability
- Wide range of Communication Interfaces and Protocols
- Compatible with IEEE802.11b/g/n standards (PIR-230/PIR-231 Only)
- Support infrastructure and limit-AP modes for wireless networks (PIR-230-WF/PIR-231-WF Only)
- Ceiling or Surface-Mount Design
Introduction

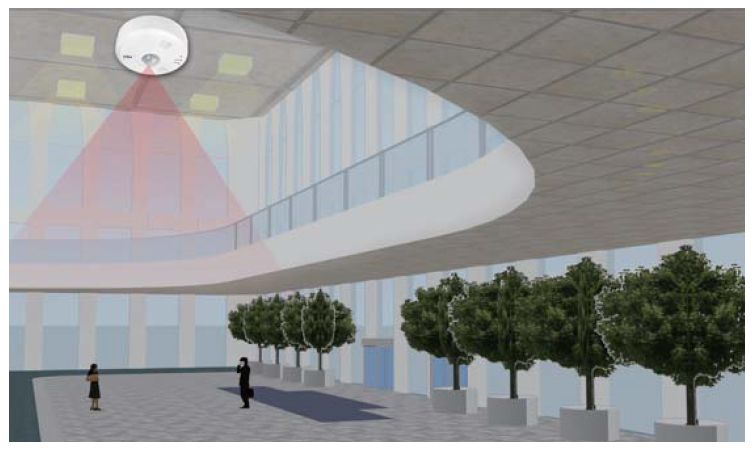

PIR series modules have the ability to detect infrared waves generated by the human body within a diameter of approximately 8 meters, with a coverage area of 360° for indoor motion detection. The modules can be configured to automatically switch on a light if motion is detected. The modules also contain a temperature and humidity sensor for measuring indoor temperature and humidity, or it can be configured to activate a fire alarm. A wide range of interface connections can be selected to suit individual needs, including RS-485/Ethernet/Wi-Fi, provide support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems. A free Utility is also included that allows configuration information and data to be displayed in a powerful chart format that can be exported to Microsoft Excel.
The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fireproof material, and the white minimalist exterior design ensures that it is easy to match with interior decoration.

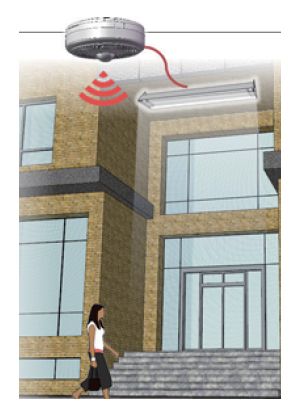

Applications
- Lighting and exhaust fans in public toilets
- Common lighting in staircases
- Lighting in parking areas
- Garden lights
- Lighting for changing rooms in shops
- Corridor lighting, and many more situations
Specifications
| MS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal, ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | Yes, 1 as Power/Communication Indicator. 1 as Alarm Indicator |
| PIR | |
|---|---|
| Detection Height | 4 m Max. |
| Detection Field of View | 360°; 8 m Diameter Max. |
| Lux Control Level | Hardware: 2 modes (Dawn and dust) / Software: 5-step |
| Delay Time | Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049 Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194 |
| PIR Response Time | 1 second |
| Temperature Measurement | |
|---|---|
| Fire Alarm | 65°C (Programmable) |
| Range | -40 ~ +120°C |
| Resolution | 0.01°C |
| Accuracy | ±0.5°C (at 0 ~ 60°C) |
| Humidity Measurement | |
|---|---|
| Range | 0 ~ 100% RH |
| Resolution | 0.01% RH |
| Accuracy | ±5% RH |
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 m (LOS) |
| Standard Supported | Wi-Fi: IEEE 802.11 b/g/n |
| Mode | Infrastructure/ Limited AP |
| Encryption | WEP, WPA ,WPA2 |
| Digital Input | |
|---|---|
| Channels | 2 |
| Type | Wet Contact |
| ON Voltage Level | 70 ~ 220 VAC |
| OFF Voltage Level | 20 VAC Max. |
| Input Impedance | 68 KΩ, 1 W |
| Relay Output | |
|---|---|
| Channels | 1 |
| Type | Power Relay, Form C |
| Contact Rating | NO: 10 A @ 250 VAC NC: 6 A @ 250 VAC |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 1 x Ethernet/PoE |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Protocol | DCON, Modbus RTU, Modbus TCP |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | 18 ~ 48 VDC, PoE |
| Consumption | 3 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | Ø150 x 53 (Ø x H) |
| Installation | Ceiling /surface mounted |
| Ingress Protection Rating | IP20 |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +35°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Ordering information
| PIR-230-WF CR | PIR Motion Sensor (4 m), Temperature and Humidity Sensor Module (RS-485, Ethernet PoE, Wi-Fi) (Asia Only) |
