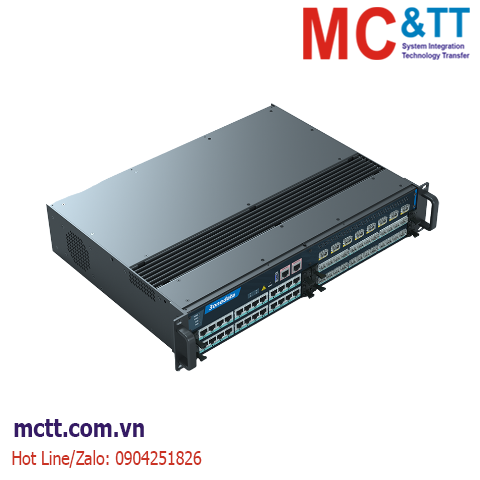

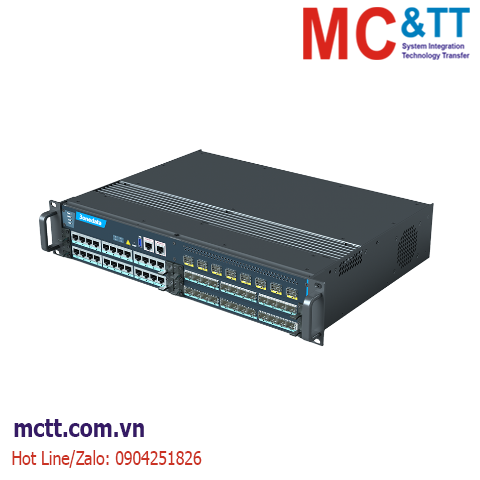

Switch công nghiệp quản lý Layer 3 với 8 cổng 10Gb SFP 3Onedata ICS5556-MAIN
ICS5556 series are 56-port Gigabit/10Gigabit layer 3 Ethernet switches, which adopts modular structure design and supports multiple combinations of frame and board card. The frame supports 8 10Gigabit SFP + slots, the board cards support 12 Gigabit SFP slots or RJ45(optional), and the whole machine adopts 2U rack installation. Abundant numbers of interfaces, bandwidth of Gigabit/10Gigabit combination and ability to transmit large amounts of video, voice and data with high performance and high speed meet the application requirements of large-scale industrial network.
Network management system supports a variety of network protocols and industry standards, such as ARP, VRRP, RIP, OSPF, BGP, NAT, ERPS, STP/ RSTP/MSTP, 802.1Q VLAN, QoS function, IGMP Snooping static multicast function, PIM, LLDP, port trunking, port mirror, etc. It has perfect management functions, supporting port configuration, port statistics, network diagnosis, rapid configuration, online upgrade, loop detection, etc. CLI, WEB, Telnet, SSH, SNMP and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
RESET button can be used to reboot the device and restore factory defaults. This product supports redundant AC power supply. The input power supply is two independent power supply modules which can ensure the normal operation of the device when one power supply fails. When power supply or link has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
Features
- Support 8 10Gigabit SFP+ slots and 4 board card slots which can match 12 Gigabit SFP slot board cards or 12 Gigabit copper port board cards (optional)
- Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function
- Support ERPS and loop detection, which can eliminate loop effectively and prevent broadcast storm caused by data loop
- 10 Gigabit bandwidth can transmit large amounts of video, voice and data with high performance and high speed
- Support AC redundant power supply, input voltage: 100~240VAC
- Support -40~65℃ wide operating temperature range
Specification
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE802.3ae for 10GBase-X SFP+ IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1AB for LLDP ITU-T G.8032 for ERPS |
| Management | SNMP v1/v2c/v3 Centralized Management Devices, RMON, Port Mirroring, QoS, LLDP, DHCP Server/Relay, File Management, Log Management, Port Statistics, ARP |
| Security | User permission rating, ACL, NAT, port alarm, power alarm, storm suppression, Telnet/SSH configuration, DHCP Snooping, link flapping protection, aggregation protection, loop detection |
| Switch Function | 802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation |
| Unicast / Multicast | Static Multicast, Multicast Routing, IGMP-Snooping, PIM-SM, PIM-DM |
| Redundancy Technology | Ring, STP/RSTP/MSTP, ERPS |
| Troubleshooting | Ping, Traceroute, Port Loopback, SFP Digital Diagnosis |
| Routing Technique | VRRP, RIP, OSPF, BGP |
| Time Management | NTP |
| Interface | 10Gigabit SFP+: 1000/10GBase-X self-adaptive SFP+ slot
Gigabit SFP: 100/1000Base-X self-adaptive SFP slot Gigabit copper port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption USB interface: Type-A USB 2.0 Female, support system debugging and configuration file management CONSOLE port: CLI command line management port(RS-232), RJ45 MANAGER port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption for device network management |
| Indicator | Power indicator, alarm indicator, running indicator, interface indicator |
| Switch Property | Transmission mode: store and forward
MAC address: 96K Packet buffer size: 32Mbit Backplane bandwidth: 256G |
| Power Supply | 100~240VAC redundant power supply, single-phase socket with rocker switch |
| Power Consumption | Full-load: ≤ 60W@220VAC (all board cards and the complete machine are copper ports, under high temperature environment),
≤ 90W@220VAC (all board cards and the complete machine are fiber ports, under high temperature environment) |
| Working Environment | Operating temperature: -40~60℃
Storage temperature:-40~60℃ Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic | Housing: IP30 protection, metal
Installation: 19-inch 2U rack mounting Dimension (W x H x D): 482.6mm×88.3mm×374.3mm (lugs are included) Weight: ≤ 9.5kg (complete machine) |
| Industrial Standard | IEC61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge:± 8kV Contact discharge: ±6kV IEC61000-4-4 (EFT, electrical fast transient), Level 3 Power supply: ±2kV Signal: ±1kV IEC61000-4-5 (Surge), Level 3 Power supply: differential mode±1kV, common mode±2kV Signal: differential mode±1kV, common mode±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Authentication | CE, FCC, RoHS |
Ordering Information
| Available Models | Type | Gigabit | 10 Gigabit | Power Supply | |
| RJ45 | SFP | SFP+ | |||
| ICS5556-24GT24GS8XS-2P220 | Complete machine | 24 | 24 | 8 | 100~240VAC
Redundant power supply |
| ICS5556-MAIN-2P220 | Frame | — | — | 8 | |
| ICS5556-IM-12GT | Board card | 12 | — | — | — |
| ICS5556-IM-12GS | Board card | — | 12 | — | |
