Router công nghiệp 5G Four-Faith F-NR120

F-NR120 Cellular (5G NR), 2.4G/5.8G WIFI, SIM*2 , GPS(option)

Mã: F-NR120 Danh mục: Router công nghiệp GPRS/3G/4G/5G VPN + Wi-fi, Thiết bị truyền thông không dây M2M

Vendor: Four-Faith

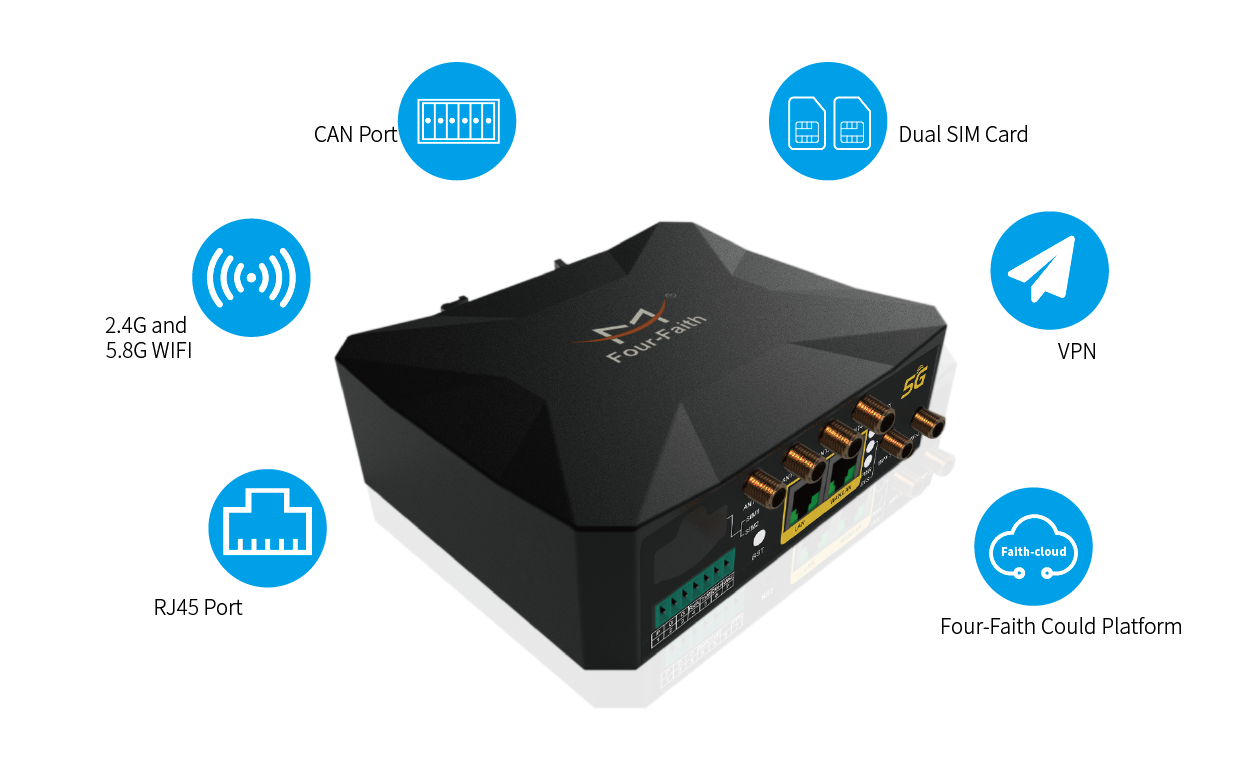

Router công nghiệp 5G Four-Faith F-NR120

Four-Faith 5G Industrial Router F-NR120 using a high-performance industrial-grade 32-bit communication processor and industrial-grade wireless module, takes embedded real-time operating system as the software support platform, and provides 1 RS232 (or RS485), 1 Ethernet LAN, 1 Ethernet WAN (or LAN). It can connect with serial port, CAN port, Ethernet devices and WIFI device at the same time to achieve transparent data transmission and routing function.

Product Features
● Supports NSA and SA networks, compatible with all operators.
● Using complete anti-drop mechanism, data transmission is stable.
● Support hardware encryption.
● Support 5G/4G, Ethernet smart switch.
● Support positioning function (Beidou, GPS), PPS
● Industrial design, high and low temperature resistance, durable
● Support dual-band WiFi (2.4G and 5.8G)
● Support IPV6/IPV4

Product Advantages
● WDT watchdog design to ensure system stability.
● Using complete anti-drop mechanism to ensure the data terminal is always online.
● Support local data storage to ensure that data is never lost.
● RS232/RS485 interface for power supply and data isolation, accord with CSA, UL and IEC standards
● Intelligent data terminal, power on can turn on the data transmission state.
● Support remote management，SYSLOG、SNMP、TELNET、SSHD，HTTPS

Topology

Applications

Specification

Project	Content
Wireless	Industrial wireless module
Frequency	5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 LTE: B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/ B13/B14/B20/B25/B26/B28/B29/B30/B38/B39/B40/B41/B42/B43/ B46/ B48/B71 Remarks: Different modules support different network standards
Bandwidth	5G NR：DL 3.4Gbps,UL 350Mbps LTE Cat20：DL 2.0Gbps,UL 150Mbps HSPA+：DL 42Mpbs,UL5.76Mbps
Power	<23dBm
Sensitive	<-97dBm

Project	Content
Frequency	IEEE802.11b/g/n,2.4G,AP mode,Station mode（option） IEEE802.11ac,5.8G,AP mode,Station mode（option）
Bandwidth	IEEE802.11b/g：54Mbps IEEE802.11n：300Mbps IEEE802.11ac：866Mbps
Encryption	WEP、WPA、WPA2
Power	26dBm（11b）,21dBm（11ac/MCS7/HT40）,20dBm（11ac/MCS9/HT80）
Sensitive	<-72dBm@54Mpbs

Project	Content
CPU	Industrial 32 bit processor
FLASH	Nor flash 16MB,nand flash 128MB
DDR3	512MB

Project	Content
WAN	1*10/100/1000M Ethernet （RJ45）, Auto MDI/MDIX,Built-in 1.5KV electromagnetic isolation protection Remarks: Can be used as LAN port
LAN	1*10/100/1000M Ethernet （RJ45）, Auto MDI/MDIX,Built-in 1.5KV electromagnetic isolation protection
Serial	1*RS232/RS485,Built-in 1.5KV electromagnetic isolation protection Data bit：5、6、7、8 Stop bit：1、1.5(option)、2 Check：NONE、EVEN、ODD、SPACE(option) Baud rate：2400~115200bits/s
CAN	1*CAN2.0
Indicators	“WIFI”, “Online”,”PWR”, “SYS”
Antenna	Cellular：4 standard SMA female antenna interfaces, characteristic impedance 50 ohms WIFI：2 standard SMA male antenna interfaces, characteristic impedance 50 ohms GPS： 1 calibrated SMA female antenna interface, characteristic impedance 50 ohms (optional)
SIM/UIM	Standard drawer type user card interface, support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection, support dual SIM card
Power	Terminal power socket
Reset button	Through this button, the parameter configuration can be restored to the factory value

Project	Content
Standard	DC 12V/1.5A
Range	DC 9~36V
Consumption	<1.2A (12V)

Project	Content
Shell	Metal shell, protection grade IP30
Size	13511043mm (Does not include antenna and mounting parts)
Weight	500g

Project	Content
Operating	-35~+75ºC（-31~+167℉）
Storage	-40~+85ºC（-40~+185℉）
humidity	95%(No condensation)

Project	Content
GPS module	Industrial GPS module
Receiver type	50 channels, GPS L1 (1575.42MHz) C/A code Support WAAS, EGNOS, MSAS, GAGAN, compatible with GALILEO
Maximum update rate	4Hz
Accuracy	Locate：2.5mCPE SBAS：2.0mCPE
Capture	Cold start: 29S Warm start: 29S Auxiliary start: <1S Hot start: <1S
Sensitive	Tracking: -160dBm Recapture: -160dBm Cold start: -144dBm
Timing accuracy	RMS：30ns 99%：<60ns Graininess：21ns
Time pulse	0.25~1000Hz
PPS	Support, the rising edge of the pulse is aligned with UTC time

Ordering Information

Model	Content
F-NR120	Cellular (5G NR), 2.4G/5.8G WIFI, SIM*2 , GPS(option)
