Kiểm tra độ bền mỏi của xi lanh (Reliability Test Stand)

Lượt xem: 51

Lorenz has been performing an extensive reliability fatigue test on our ZFA Tension and Compression Load Cell.

How it Works

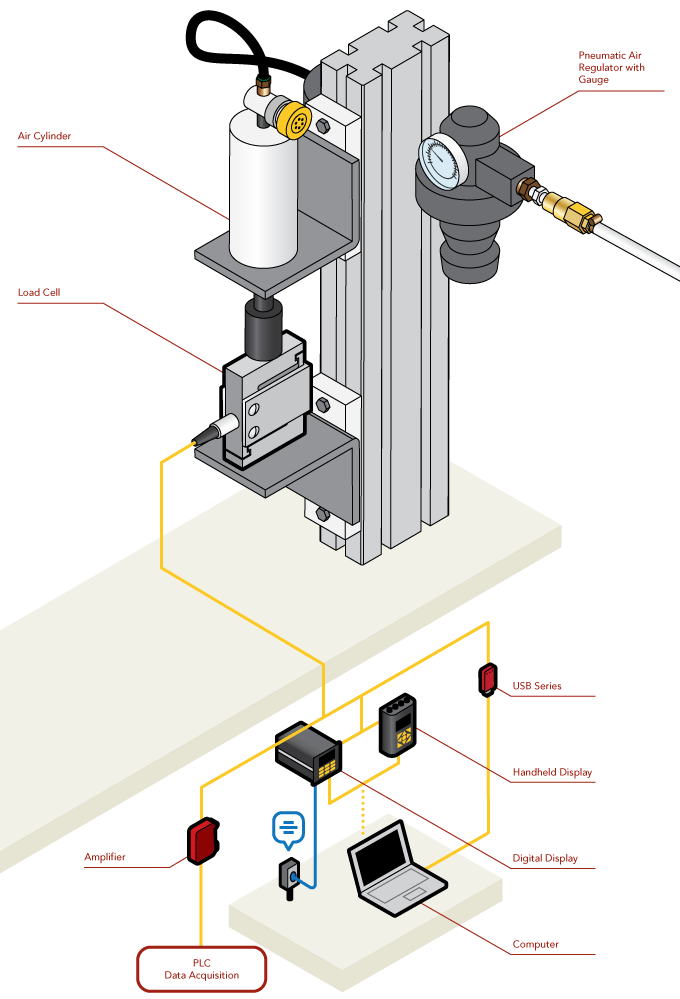

  1. Lorenz constructed a pneumatic test stand to extensively test the fatigue rate of our ZFA Tension and Compression Load Cell.
  2. We began this test in 2001 to decipher the life expectancy of our Tension and Compression Load Cell unit.
  3. The pneumatic cylinder delivers the compressive force of 113 lb. at 196,120 times a day.
  4. It is important to note that this particular load cell has a capacity of 100 lb.; therefore, we have been overloading this sensor for almost 15 years to demonstrate the high performance and quality of our product.
  5. We anticipate this load cell will reach one billion cycles on June 1st of 2015.
