Press (Hydraulic or Pneumatic) verification testing is a necessary requirement within the automation process. By implementing load cells with USB output, the operator can verify the uniform loading of a large platform. Each load cell serves as a monitoring point within the system.
How it Works

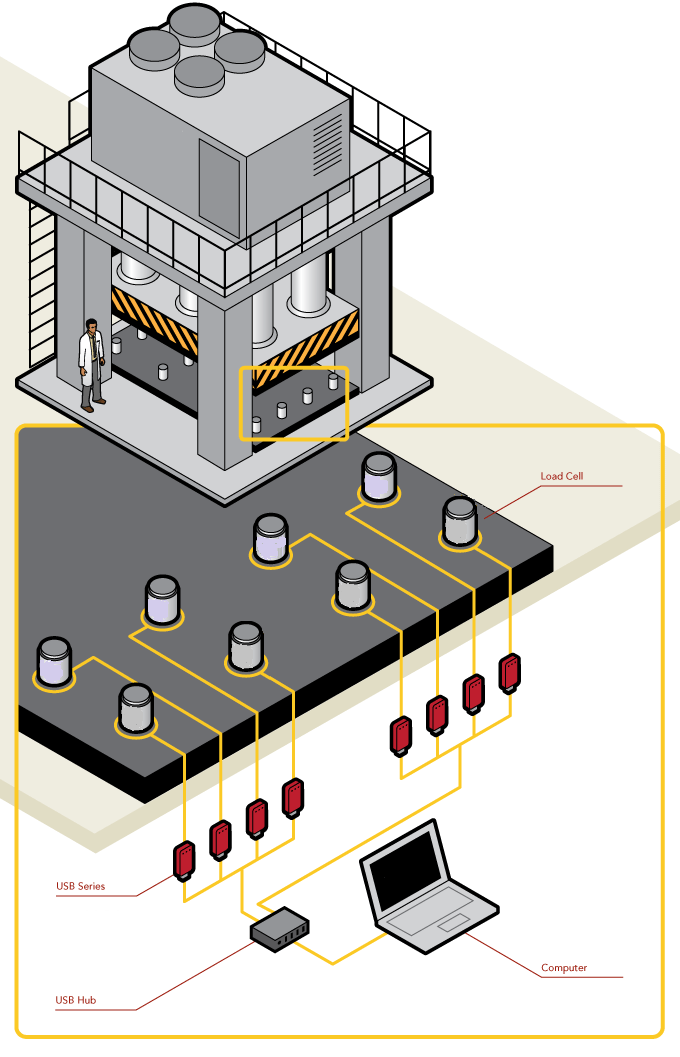

- In this application, engineers have installed several CB50X Column Load Cells at the base of this hydraulic press, implementing enough load cells to quantify the full force capacity of the press.
- These load cells have been paired with Lorenz USB modules allowing a live stream of measurements onto the engineer or operator’s PC.
-
As compressive forces are applied to the CB50X Load Cells, Lorenz’s USB Solutions in conjunction with Lorenz Test and Measurement Software can verify if the hydraulic press is accurately performing.
