Cần cẩu cân di động (Portable Crane Weighing)

Lượt xem: 42

Portable cranes often endure the weight of a variety of payloads. Utilizing a robust, high capacity load cell helps operators monitor the weight variations between each load.

How it Works

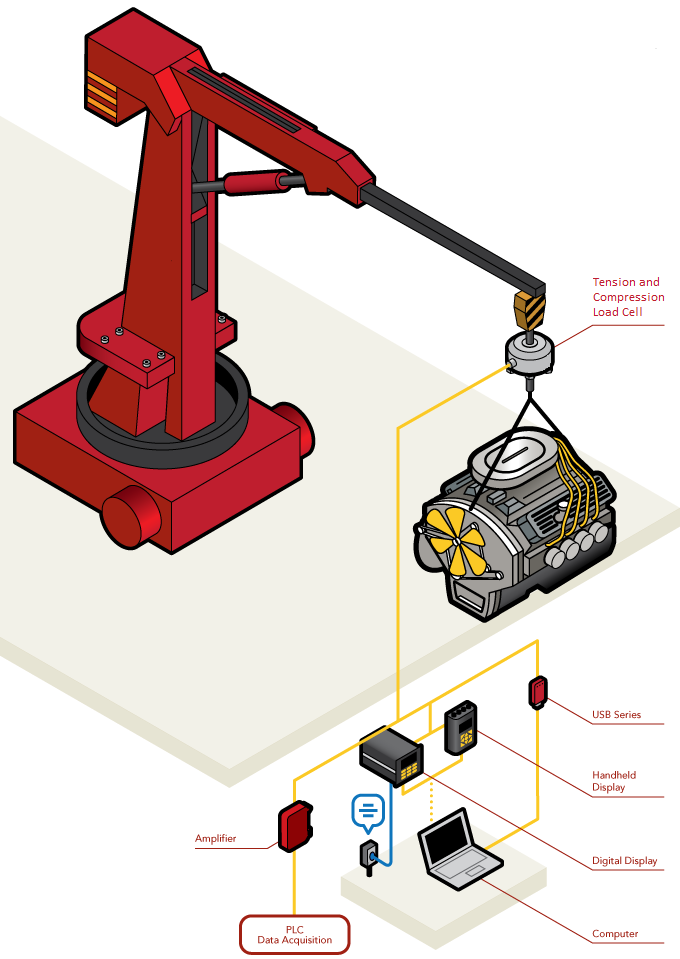

  1. Operators and industrial engineers often utilize high capacity, robust load cells to provide the critical verification measurements on portable cranes, as these cranes often endure the weight of a variety of payloads.
  2. Installed to the crane’s cable, (Tension and Compression Load Cell) Lorenz ZA30X measures the weight of load, as well as the endurance of the cable as it maneuvers the load.
  3. These measurements can be amplified through an Amplifier to a PLC, shown on a digital display (IPC50 or GM77) or streamed directly to a PC using Lorenz’s USB Solutions.
  4. If the instrument is paired with Lorenz Test and Measurement Software operators can log, and graph all the data on the PC.
